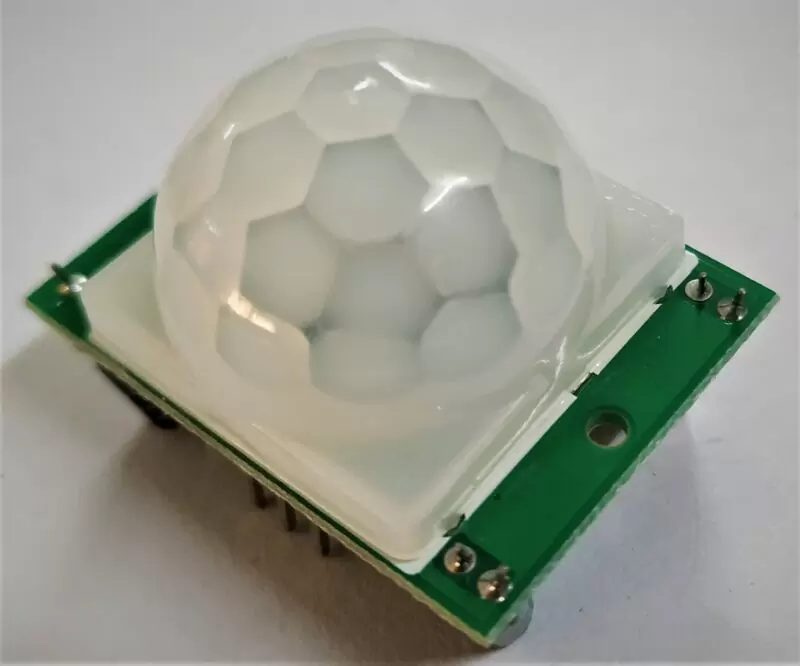

Hey guys, welcome back to Techatronic. Hope you are doing fine. So today we will discuss the working of an esp8266 motion sensor. Well, I hope you know what a PIR sensor is. If not then don’t worry we will give you a brief introduction to it. Before starting I would like to give you a superb offer that our E-book on Arduino is now available at a special discount. This E-book has 10+ interesting projects with well-explained code and working. So PIR stands for passive infrared and it is used for detecting the motion of the body in its range. They are available in different ranges and sizes. The PIR sensor that we use in this project is of small size and range. Make the connections as per the diagram given below and then upload the code.

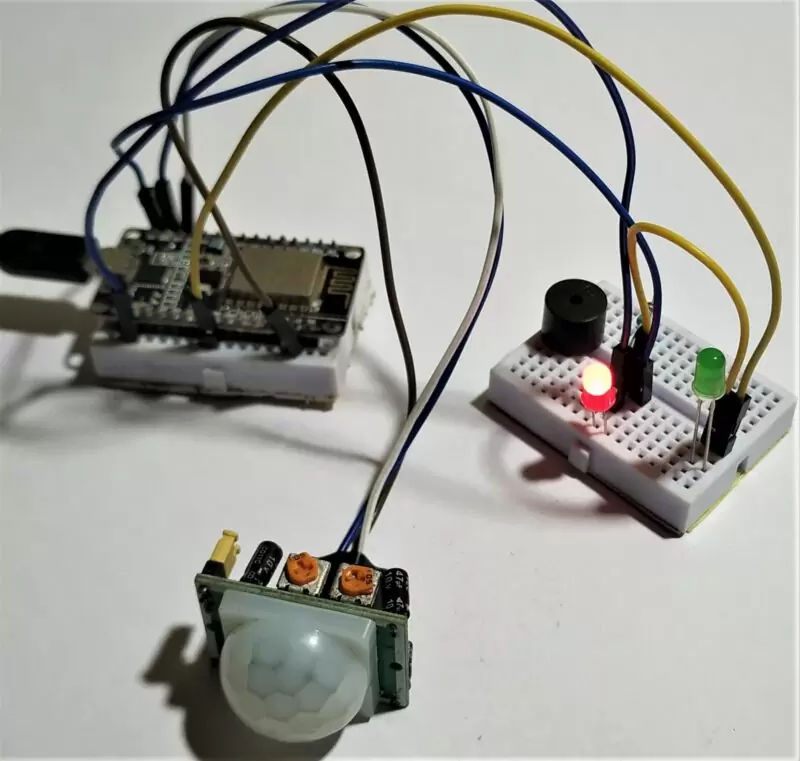

esp8266 motion sensor Working

Initially, both the LEDs are turned on and later they will glow according to the signals that are generated by the PIR sensor. If the PIR sensor detects some movement in its range then both the LEDs will glow and the buzzer also starts beeping else only one LED will glow and the buzzer is silent. In this esp8266 tutorial, we will make a useful system. This system is very useful for making various security systems and alert systems. You can also add more components to the circuit to enhance security. You can also see the values generated by the PIR sensor on the serial monitor screen. We have attached some screenshots below. You can also read the Arduino-based home security system using Arduino made by us.

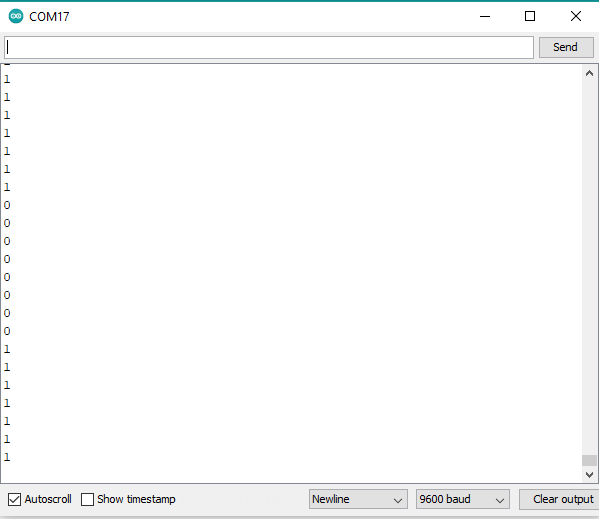

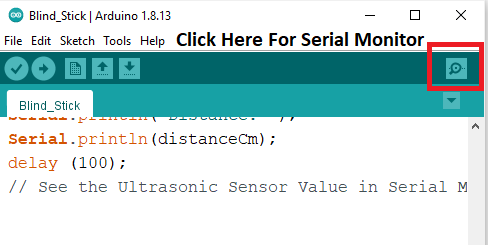

Simulation on Serial monitor

pir sensor

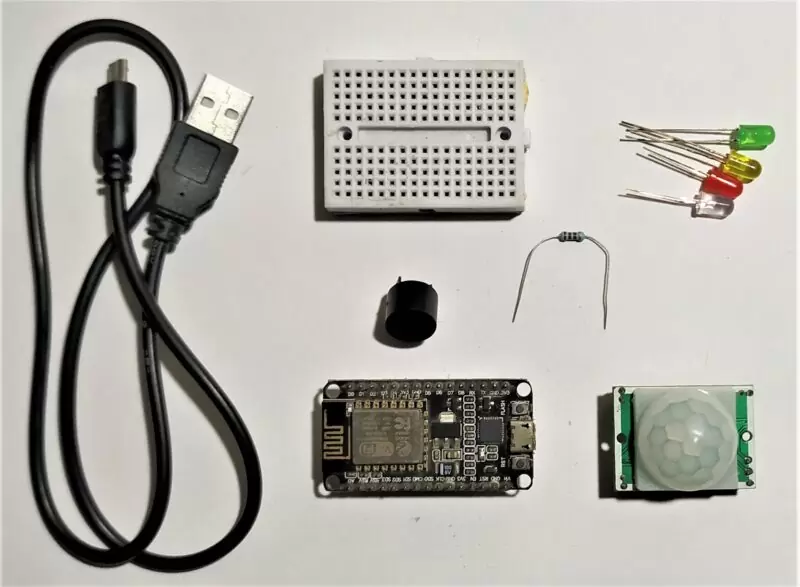

Components Required

  • ESP8266 nodemcu board
  • PIR motion sensor
  • Buzzer
  • Two LEDs and a breadboard
  • Jumper wires
  • 220-ohm resistor
  • USB cable for uploading the code

Components Table/buy link

S.NoComponent NameQuantityBuy Link
1.Nodemcu esp82661https://amzn.to/3EUGhuu
2.Nodemcu cable1https://amzn.to/3F1ywmu
3.PIR Motion Sensor 1https://amzn.to/3iNK9Eb
4.Buzzer1https://amzn.to/3Bh9o8I
5.LED2https://amzn.to/3AQbzzY
6.220-ohm Resistor2https://amzn.to/3oioZkQ
7.Jumper Wire40https://amzn.to/39q43jr
8.Breadboard1https://amzn.to/39vsRX2

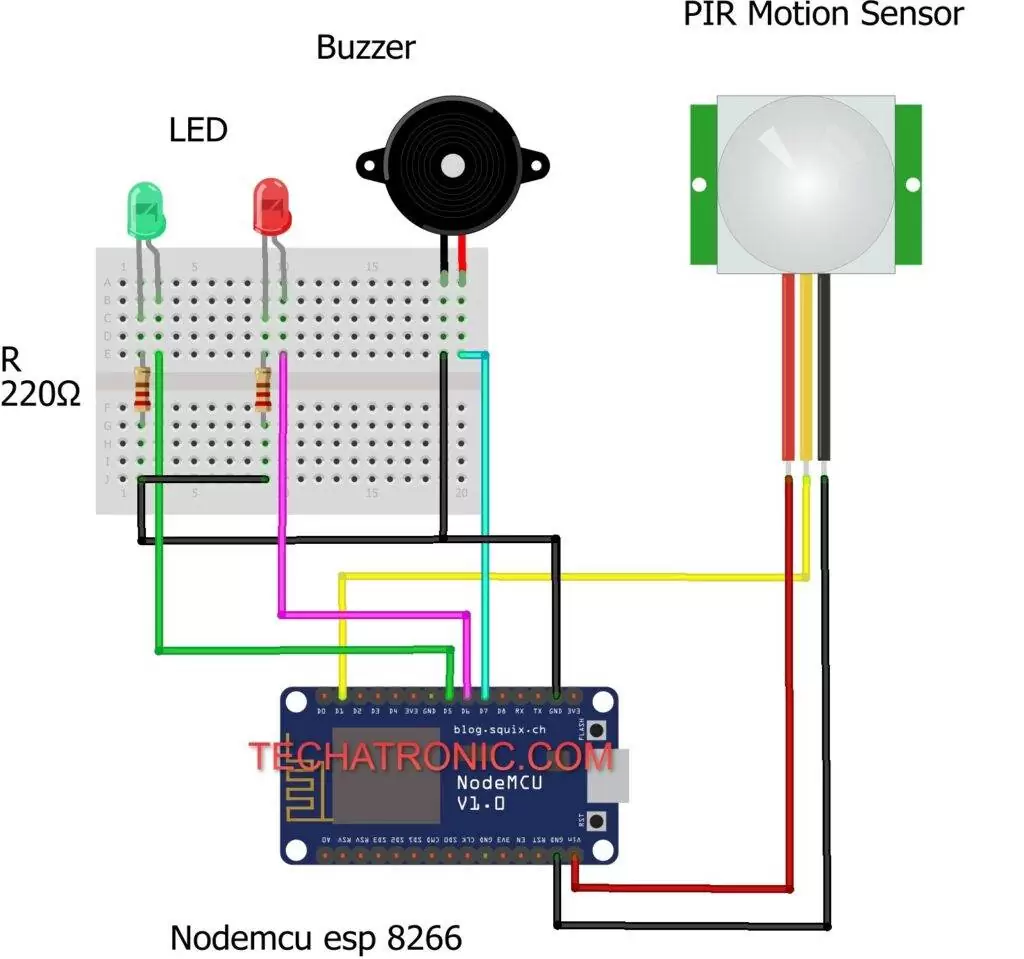

esp8266 motion sensor Circuit Diagram

esp8266 motion sensor circuit diagram

Connection diagram

Nodemcu esp8266PIR Motion Sensor
Vin, VVVCC
GND GND
D2 PinOUT Pin
Nodemcu esp8266Buzzer
D7 PinPositive
GND Negative
ArduinoLED GLED R220 Ohm Resistor
D7 PinAnode Pin
D6 Pin Anode Pin
 Cathode PinCathode PinTerminal 1
GND  Terminal 2

Connect three jumper wires to the PIR motion sensor. Join the VCC pin of the PIR sensor with the VIN pin of the nodemcu. Attach the GND pin of the PIR sensor to the GND pin of the nodemcu. Connect the OUT pin of the PIR sensor with the digital-1 pin of the nodemcu. Take the buzzer and join its positive leg with the digital-7 pin of the nodemcu. Attach the negative leg of the buzzer with the GND pin of the nodemcu. esp8266 motion sensor interfacing is quite easy. After it takes two LEDs and places them on the breadboard. Connect the positive leg of the first LED with the digital-5 pin of the nodemcu and the positive leg of the second LED with the digital-6 pin of the nodemcu. Join the negative legs of both the LEDs with the GND pin of the nodemcu via 220-ohm resistors. Now proceed forward to the code section.
